Function of hydraulic cylinder.

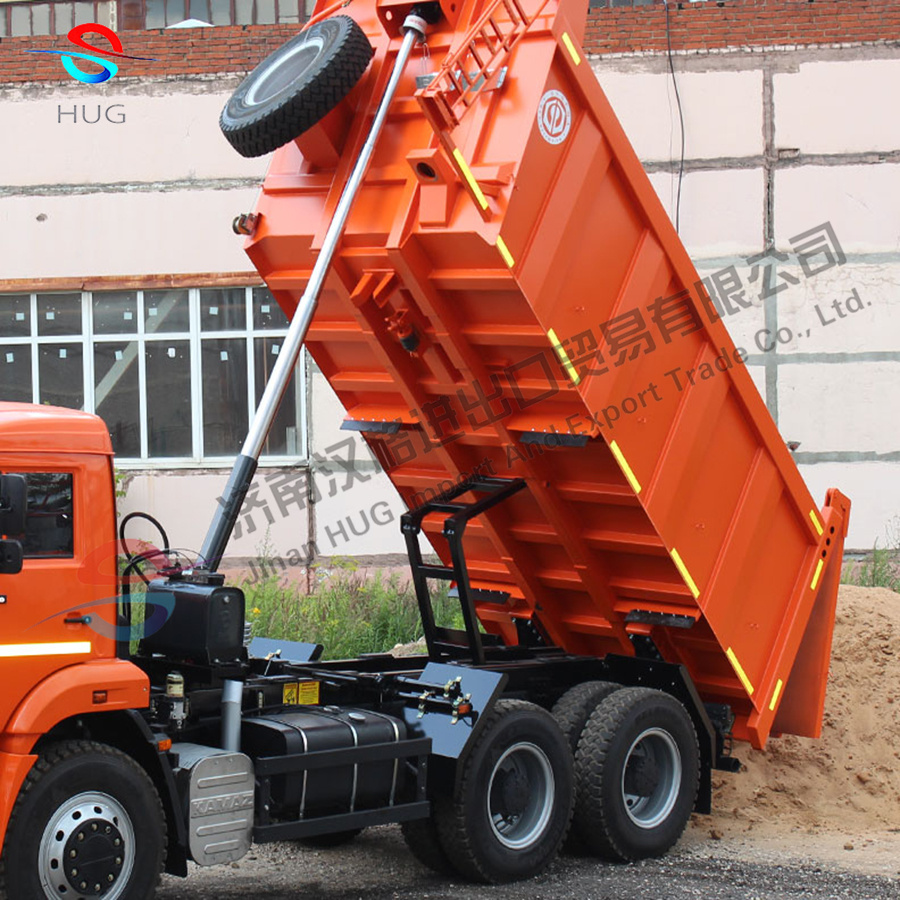

Hydraulic cylinder is the core component of the hydraulic system of dump truck, and its main function is to lift the cargo box to a certain angle through hydraulic pressure, so as to achieve automatic unloading. The working principle of the hydraulic cylinder is relatively simple, through the hydraulic pump to generate pressure, push the cylinder piston rod to extend or retract, so as to drive the cargo box lift.
Vehicle tipping hydraulic cylinders selection guide.
Choosing the right hydraulic cylinder for tipping needs to consider the following aspects.
1. According to the needs of the choice of suitable hydraulic cylinder.
Model selection: different models of dump trucks need different specifications of hydraulic cylinders, the choice of the vehicle manual should be referred to.
Load capacity: Select the appropriate cylinder according to the maximum load of the tipper to ensure that it can withstand the work load.
2. Important parameters and considerations.
Stroke length: The stroke length of the hydraulic cylinder determines the lifting height of the cargo box, choose the appropriate stroke length according to the actual demand.
Pressure level: The working pressure of the hydraulic system should be matched with the pressure level of the cylinder to prevent the cylinder from being damaged due to excessive pressure.
