What mounting methods are generally used for hydraulic cylinders?

Hydraulic cylinders have a variety of mounting methods, the specific use of which mounting method depends on the application scenario and design requirements. The following are common installation methods:

1, bottom flange mounting: bottom flange mounting method is suitable for longer stroke cylinder, usually using a standard flange connection. This type of installation requires the installation of a bottom flange in the lower part of the cylinder, the bottom flange has a through hole connected with the cylinder piston rod. The bottom flange is welded together with the equipment base or bracket to realize the fixation.

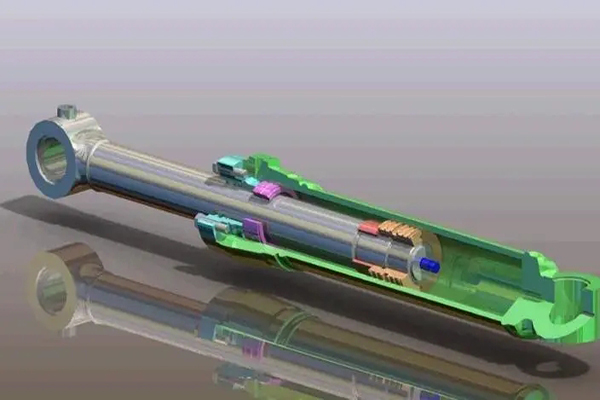

2, earring mounting: earring mounting method is suitable for hydraulic cylinders that need to be connected with the actuator. In this type of installation, the cylinder has earrings at both ends, which can be directly connected with the actuator. The earrings are usually fastened with high-strength bolts to ensure the reliability of the connection.

3, side flange mounting: side flange mounting method is suitable for the need to install the cylinder on the side of the equipment occasions. In this type of installation, one end of the cylinder has a side flange, which can be connected with the flange on the side of the equipment. The side flange is usually fastened with high-strength bolts to ensure the reliability of the connection.

4, support type installation: support type installation is suitable for the need to install the cylinder in the equipment inside the occasion. In this type of installation, the lower part of the cylinder has a support, which can be directly installed on the bracket or base inside the equipment. The support type installation method needs to consider the internal space and structure of the equipment to ensure the feasibility of installation.

5、Tie rod type installation: The tie rod type installation method is suitable for the cylinder with a short stroke. In this type of installation, both ends of the cylinder with through holes, you can use double-headed bolts to connect the cylinder and the mounting base to pull tight. Tie rod type mounting is suitable for cylinders with shorter strokes and lower pressures.

In summary, the mounting method of the hydraulic cylinder depends on the application scenario and design requirements. In actual application, it is necessary to choose the suitable mounting method according to the specific situation to ensure that the cylinder can be correctly connected to the system and meet the system requirements.
